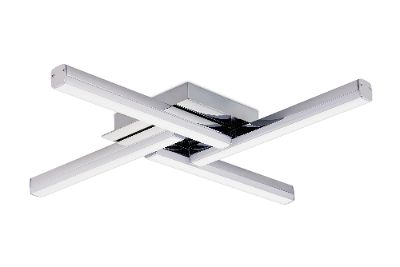

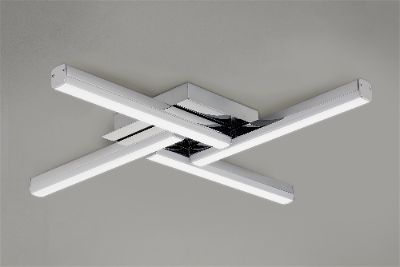

Moda 4 Light Ceiling, 4 x 6W LED, 4000K, 2210lm, IP44, Polished Chrome, 3yrs Warranty

172 VAT inc

SKU: LBL17029 Categories: , ,

Description

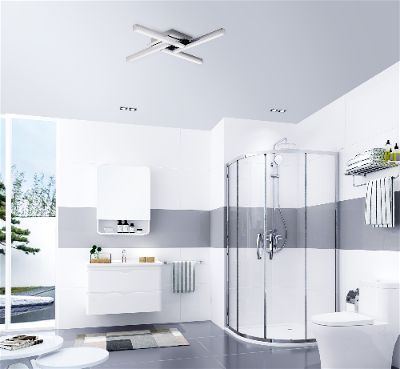

Available in three different sizes, the Moda wall lights are sleek and modern in design with an ambient light distribution being emitted from the integral 4000K LED’s. The polished chrome or sand black framework coupled with the opal white rectangular diffusers form a reliable IP44 rated range. The LED arms are adjustable offering a rare control of directionality for bathroom lighting perfect for use around mirrors. Axel also offers a flush ceiling light.

Additional information

LBL17029

Catalogue Description 4 Light Ceiling
Colour Finish Polished Chrome
Item Nett Weight (kg) 1.6kg
Length (mm) 596mm
Width (mm) 596mm
Height (mm) 67mm
Materials Used Polycarbonate, Metal
Energy Class A++ to A
No: of Lamp 4
Lamp Socket Integral LED
Recommended Lamp Integral LED
Max Wattage Lamp (W) 6W
Lamp Included Yes – Integrated
Type of Lamp Included Integrated LED
Colour Temperature (K) 4000K Natural White ( ±5%)
Average Life of LED (hrs) 20000hrs
Type of LED SMD
Lumens Per LED 27-29lm
Beam Angle (°) 120°
System Flux (lm) 2210lm ( ±5%)
CRI >80
Driver Included Yes
Type of Driver Constant Current
Power Factor (?) >0.90 ( ±5%)
Constant Current Output (mA) 300mA
Min/Max. Voltage Output (V) 57-72V DC
Load Range (W) 20-25W
Ta (°C) 50°C
Tc (°C) 85°C
Protection Class Class 2 – Double Insulated
Total Power Consumption (W) 24W ( ±5%)
Input Voltage (V) 220-240V~50/60Hz
Switched Not Switched
Dimmable No
Dimmer Included No
IP Rating IP44
Average Life (hrs) 20000hrs
Warranty (yrs) 3yrs
CE Yes
Rohs Yes
TUV Yes
EMV/EMC Yes
Shade Colour Opal White
Base Dimensions (mm) L:160mm x W:160mm x H:30mm
Plate Dimensions (mm) L:190mm x W:190mm x H:0.8mm
Bracket Dimensions (mm) L:155mm x W:155mm x H:30mm
Shade Dimensions (mm) L:335mm x W:25mm x H:12mm
Number of Cartons 1
Carton Gross Weight (kg) 2.6kg ( ±5%)
UK Commodity Code 9405109890
